Basic concepts

TaskBlaster is a Python-based workflow utility with a customized workflow syntax. Here we provide a short reference for the different concepts you will encounter when running the tutorial and when you develop you own workflows.

Tasks

Tasks are the smallest building block of the workflow and are represented by Python functions. A task ideally contains a single computation of some quantity, such as a ground state calculation or structural relaxation. Below is a simple example of a ground state task where the ground state energy is calculated using GPAW.

from pathlib import Path

from ase import Atoms
from gpaw import GPAW

import taskblaster as tb


@tb.mpi
def groundstate(atoms: Atoms, calc_params: dict, mpi: tb.mpi) -> Path:
    """
    Task to perform an electronic ground state calculation using GPAW.

    :param atoms: ASE Atoms object.
    :param calc_params: A dictionary containing the calculator input
        parameters.
    :param mpi: TaskBlaster MPI object.
    :return: Path to gs file
    """

    calc = GPAW(**calc_params, communicator=mpi.comm)
    atoms.calc = calc
    atoms.get_potential_energy()
    calc.write('gs.gpw')
    return Path('gs.gpw')

There are a few things that one can notice in the example above. First of all, all input that is required for the task is provided as input to the Python function. Similarly, all information needed to retrieve the information that was computed by the task (in this case the Path to the gpw-file) is returned as output from the function. This is different from workflows written using e.g. myqueue where the input/output is handled by reading and writing to files whose paths are hardcoded in the workflow. As we will see below, having explicit inputs/outputs for the tasks makes it possible for TaskBlaster to automatically keep track of the dependencies between different tasks and make sure that they are executed in the correct order.

Secondly, one can notice the decorator @tb.mpi. By providing this decorator you make sure that the correct communicator is used by the function (mpi.comm). This is important when using subworkers, whose world is different from the world of the main worker. More on this later.

Tasks can be stored in a file tasks.py in the main working directory or can be imported from external packages. TaskBlaster can find these external packages when you initialize the repository with the tb init <package_name> command.

Workflows

A workflow is represented by a Python class with the decorator @tb.workflow. The different tasks are methods on the class. Below is an example of a workflow for making a structural relaxation followed by a subsequent ground-state calculation.

from pathlib import Path

from ase import Atoms

import taskblaster as tb


@tb.workflow
class RelaxGsWorkflow:
    atoms = tb.var()
    calc_params_relax = tb.var()
    calc_params_gs = tb.var()
    optimizer_params = tb.var()

    @tb.task
    def relax(self) -> Atoms:
        return tb.node(
            'relax',
            atoms=self.atoms,
            calc_params=self.calc_params_relax,
            optimizer_params=self.optimizer_params,
        )

    @tb.task
    def groundstate(self) -> Path:
        return tb.node(
            'groundstate', atoms=self.relax, calc_params=self.calc_params_gs
        )

Here all tasks are assumed to be located in the tasks.py file in the main working directory, however tasks can also be imported from external libraries (see tutorial). The groundstate task is exactly the groundstate task above, while the relax task is a Python function that takes an initial atoms as input together with parameters for the structural relaxation (optimizer_params) as well as input parameters for the calculator used to compute the energy and forces (calc_params_relax). The output of the relax task is the relaxed atoms.

There are a few things that one can notice here:

1. The decorator @tb.workflow which is needed for taskblaster to interpret the class as a workflow class.

2. Input arguments to the workflow are provided using the function tb.var().

3. Tasks in the workflow are methods with the decorator @tb.task.

4. Tasks are methods on the class that returns taskblaster nodes (tb.node) A node contains a reference to a Python function as a string as its first argument, followed by the input arguments to the function.

5. The groundstate task takes the output from the relax task as input (atoms=self.relax). Thus defining the dependencies between each task(s) in an intuitive and implicit manner.

6. The mpi argument to the groundstate task is not explicitly given. This argument is provided automatically by using the @tb.mpi decorator in the task definition.

Subworkflows

Apart from containing any number of tasks, a workflow can also contain subworkflows. Let’s say you want to write a workflow that performs the following steps:

1. Makes a structural relaxation

2. Performs a ground state calculation

3. Calculates the band structure (or performs some other post-processing)

One can then write a workflow (here simply called MyWorkflow) that uses the RelaxGsWorkflow defined above as a subworkflow and has an additional postprocess task.

@tb.workflow
class MyWorkflow:
    atoms = tb.var()
    calc_params_relax = tb.var()
    calc_params_gs = tb.var()
    optimizer_params = tb.var()

    @tb.subworkflow
    def relax_and_gs(self):
        return RelaxGsWorkflow(
            atoms=self.atoms,
            calc_params_relax=self.calc_params_relax,
            calc_params_gs=self.calc_params_gs,
            optimizer_params=self.optimizer_params,
        )

    @tb.task
    def postprocess(self):
        return tb.node('postprocess', gs=self.relax_and_gs.groundstate)

In the example above it was assumed that RelaxGsWf was in the same file as MyWorkflow, but it can also be imported as a regular Python package.

Notice how the input to the postprocess task is defined as the output from the groundstate task of the RelaxGsWf.

Workers

Tasks can be run directly (tb run <tree/path/to/tasks>) or submitted to HPC resources. When submitting jobs to HPC resources, what you actually submit are Taskblaster workers. Each worker can pick up any number of tasks. Due to the explicit dependence between the tasks, TaskBlaster assures that the tasks are executed in the correct order. To assure optimal use of resources for small tasks each worker can be further divided into subworkers, where each subworker picks up a single task. This makes it possible to submit a worker (for a full node for e.g. 24h) which is divided into e.g. four subworkers, where each subworker will pick up and execute tasks until the worker times out.

States

How to run and submit tasks is explained in the tutorial. Here we provide a quick reference to the different states that a task can be in.

new (n): A task which is added to the tree.

queue (q): A task is in the TaskBlaster queue. This task can be picked up by a worker once its dependencies are met.

running (r): A task that has been picked up by a worker and is running.

done (d): A task that completed successfully is automatically given the state done.

fail (F): A task that failed upon execution.

cancel (C): A task with failed parents.

A failed task can be restored to a new state by unrunning the task (tb unrun <task name>). This will also remove the output from the task. One can then resubmit the task and submit workers with more resources (if the reason for the failure was time-out out-of-memory). Alternatively one can also change the input parameters to the workflow and rerun the task.

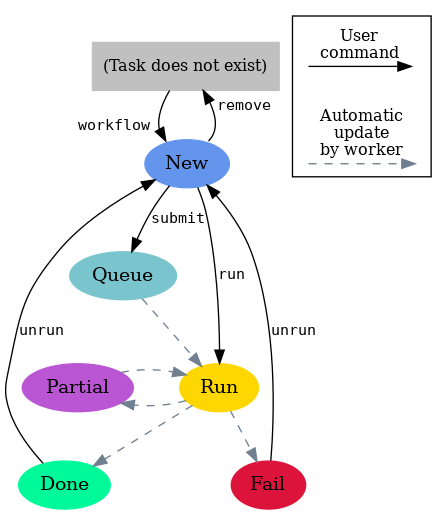

The below graph shows the most important states and how different commands may change the state of a task.

Different task states and how commands may affect those states.

Conflicts

In the ideal world one would never change the input parameters for the workflow during the calculations. However, during a high throughput study it is quite likely that one encounters unexpected situations which require some input parameters to be changed e.g. to improve the convergence for some materials. In TaskBlaster this is handled by introducing an additional kind of state (conflict state). Tasks whose input parameters are changed are marked with the conflict state ‘conflict’. To allow for full flexibility this state is only provided as information to the user. What it means is that the task was executed with a different input than what is provided in the current workflow. The state of the task is still done and one can continue to do calculations for the children tasks. However, if it is an essential change the user can choose to unrun the task, which will recursively removes the output from the tasks and all its descendants. If the user knows that the conflict is acceptable it can be marked as ‘resolved’, which will change the conflict state to resolved so that it is easy to distinguish from new conflicts. See the tutorial for an explicit example.
